Getting Started with BPDecoderPlus

This guide introduces quantum error correction decoding in ~15 minutes. We cover the problem, the pipeline, why standard BP fails, and how OSD fixes it.

---

1. The Decoding Problem

What Are We Decoding?

Quantum error correction protects logical qubits by encoding them in many physical qubits. Errors happen continuously, so we periodically measure syndrome bits to detect them.

The decoder's job: Given syndrome measurements, infer what errors occurred and whether they flipped the logical qubit.

Physical errors → Syndrome measurements → Decoder → Logical error prediction

Circuit-Level vs Code-Capacity Noise

Model	Description	Realism
Code-capacity	Errors only on data qubits, perfect measurements	Simplified
Circuit-level	Errors on all operations, noisy measurements	Realistic

BPDecoderPlus uses circuit-level noise — the realistic model where measurement operations themselves can fail.

Detection Events (Not Raw Syndromes)

We don't directly use raw syndrome bits. Instead, we use detection events:

Detection event = syndrome[round t] ⊕ syndrome[round t-1]

A detection event fires (value = 1) when the syndrome changes between rounds. This indicates an error occurred nearby in space-time.

Why detection events?

• Raw syndromes are noisy (measurement errors)
• Detection events cancel measurement errors that persist across rounds
• Stim's detector error model (DEM) is defined in terms of detection events

---

2. Pipeline Overview

The Complete Flow

flowchart LR
    A[Quantum Circuit<br/>.stim] --> B[Detector Error Model<br/>.dem]
    B --> C[Parity Check Matrix<br/>H]
    C --> D[BP Decoder]

    E[Circuit Execution] --> F[Syndromes<br/>.npz]
    F --> D
    D --> G[Error Prediction]

Key Components

Step	Input	Output	Purpose
1. Generate Circuit	Parameters (d, r, p)	.stim file	Define noisy quantum operations
2. Extract DEM	.stim circuit	.dem file	Map errors → detections
3. Build H Matrix	.dem file	H, priors, obs_flip	Decoder input format
4. Sample Syndromes	.stim circuit	.npz file	Training/test data
5. Decode	H + syndromes	Predictions	Infer logical errors

The DEM: The Rulebook

The Detector Error Model (DEM) is the crucial link between physical errors and observable detection events:

error(0.01) D0 D5 L0

This entry means: "There's a 1% probability of an error that triggers detectors 0 and 5, and flips the logical observable."

The DEM completely specifies:

• What errors can occur (each line is one error mechanism)
• Which detectors fire (D0, D1, etc.)
• Logical effect (L0 means it flips the logical qubit)
• Probability (the number in parentheses)

---

3. Belief Propagation & Why It Fails

Factor Graph from H Matrix

The parity check matrix H defines a factor graph:

• Variable nodes: Error mechanisms (columns of H)
• Check nodes: Detectors (rows of H)
• Edges: H[i,j] = 1 connects detector i to error j

flowchart TB
    subgraph Variables[Error Variables]
        e1((e₁))
        e2((e₂))
        e3((e₃))
        e4((e₄))
    end

    subgraph Checks[Detector Checks]
        d1[D₀]
        d2[D₁]
    end

    e1 --- d1
    e2 --- d1
    e2 --- d2
    e3 --- d2
    e4 --- d1
    e4 --- d2

Message Passing Intuition

BP iteratively passes "beliefs" between nodes:

1. Variable → Check: "Here's my current probability of being 1"
2. Check → Variable: "Given what others told me, here's what you should be"
3. Repeat until convergence

After convergence, each variable has a marginal probability of being an error.

The Degeneracy Problem

BP works perfectly on trees, but quantum codes have loops!

On loopy graphs, BP can:

• Fail to converge
• Converge to wrong probabilities
• Output invalid solutions (H · e ≠ syndrome)

Most critically: BP outputs probabilities, but rounding them doesn't guarantee a valid solution.

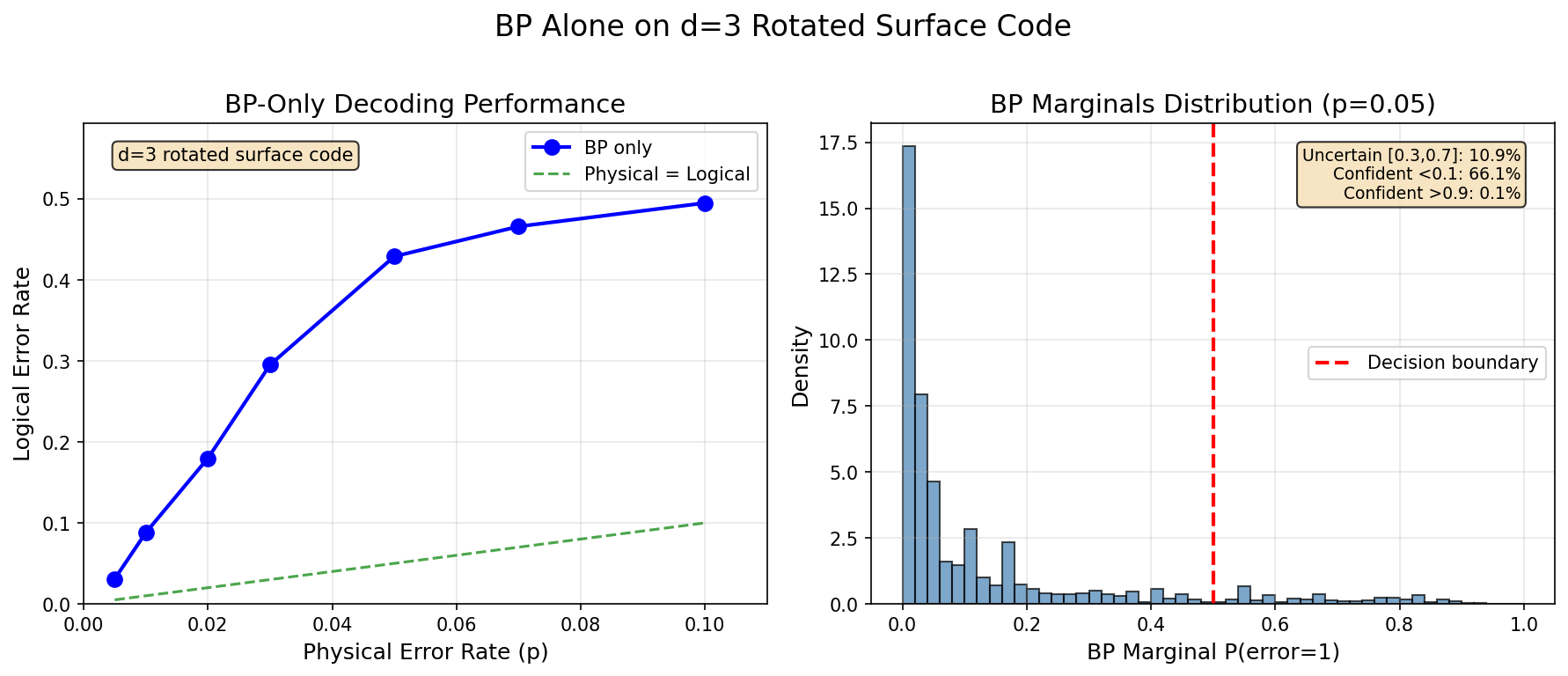

BP's marginal probabilities (left) produce an invalid error pattern when thresholded at 0.5. The syndrome constraint H · e = s is violated.

Why Quantum Codes Are Hard

Classical LDPC codes: Each error has a unique syndrome signature.

Quantum surface codes: Multiple error patterns produce the same syndrome (degeneracy). BP gets "confused" by these equivalent solutions.

---

4. OSD Post-Processing

The Key Insight

OSD (Ordered Statistics Decoding) forces a unique, valid solution by treating decoding as a system of linear equations:

H · e = s  (mod 2)

Given syndrome s, find error vector e that satisfies this constraint.

OSD-0 Algorithm in 3 Steps

Step 1: Sort columns by BP confidence

# Sort by how confident BP is (most confident first)
order = argsort(|LLR|, descending=True)
H_sorted = H[:, order]

Step 2: Gaussian elimination

# Find linearly independent columns (pivot positions)
H_reduced, pivot_cols = row_reduce(H_sorted)

Step 3: Solve the linear system

# Fix non-pivot variables to BP's hard decision
# Solve for pivot variables via back-substitution
e_pivot = solve(H_reduced, s - H_non_pivot @ e_non_pivot)

Result: A valid codeword that respects BP's confident decisions.

OSD-W: Search for Better Solutions

OSD-0 fixes non-pivot bits to BP's decision. OSD-W searches over 2^W combinations of the W least confident non-pivot bits, picking the solution with lowest soft-weighted cost.

flowchart LR
    A[BP Marginals] --> B[Sort by Confidence]
    B --> C[Gaussian Elimination]
    C --> D{OSD Order?}
    D -->|OSD-0| E[Single Solution]
    D -->|OSD-W| F[Search 2^W Candidates]
    F --> G[Best Valid Solution]
    E --> H[Predict Observable]
    G --> H

The Fix in Action

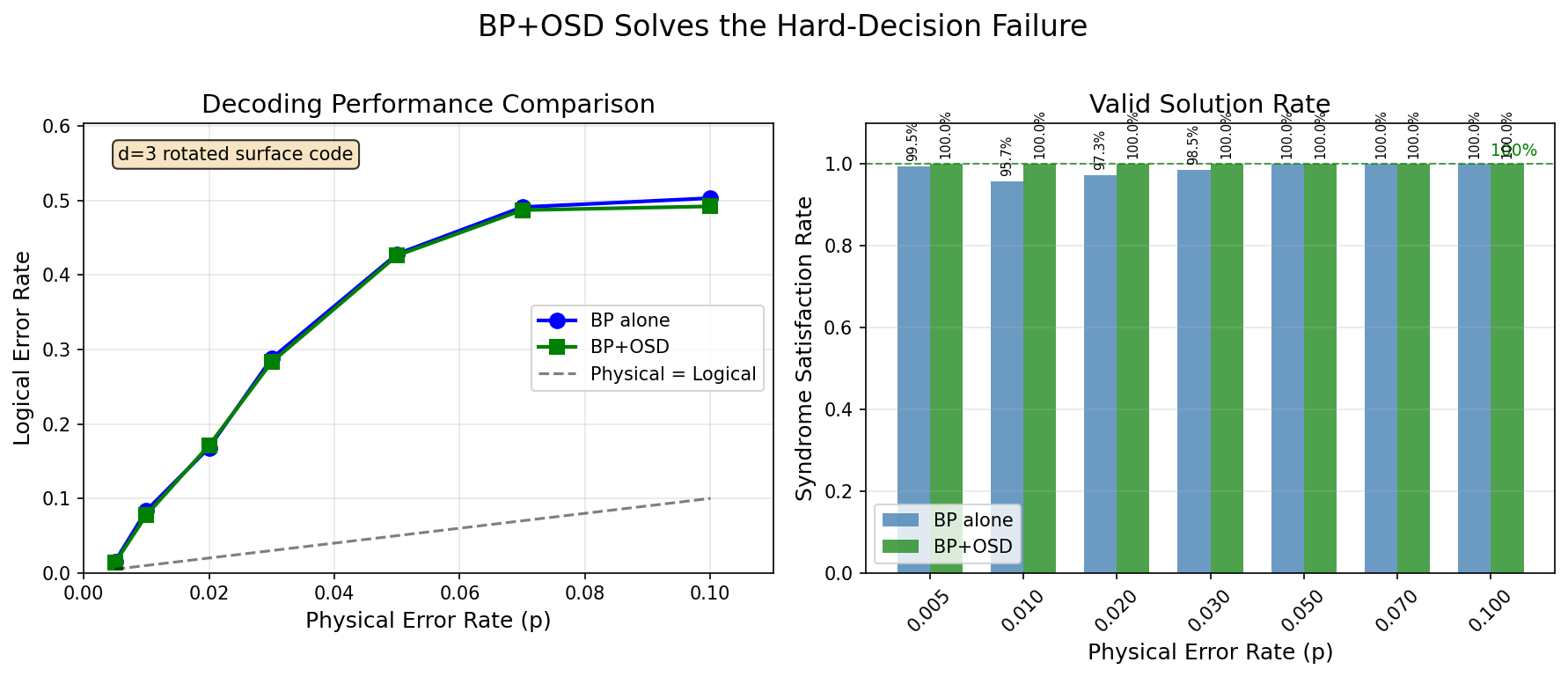

The same syndrome from above, now decoded correctly with OSD post-processing. OSD guarantees H · e = s.

---

5. Live Demo

Minimal Working Example

from bpdecoderplus.circuit import generate_circuit
from bpdecoderplus.dem import extract_dem, build_parity_check_matrix
from bpdecoderplus.syndrome import sample_syndromes
from bpdecoderplus.batch_bp import BatchBPDecoder
from bpdecoderplus.batch_osd import BatchOSDDecoder
import torch
import numpy as np

# 1. Generate circuit and extract decoder inputs
circuit = generate_circuit(distance=3, rounds=3, p=0.01, task="z")
dem = extract_dem(circuit, decompose_errors=True)
H, priors, obs_flip = build_parity_check_matrix(dem)

# 2. Sample test syndromes
syndromes, observables = sample_syndromes(circuit, num_shots=1000)

# 3. Run BP + OSD decoder
bp_decoder = BatchBPDecoder(H, priors, device='cpu')
osd_decoder = BatchOSDDecoder(H, device='cpu')

marginals = bp_decoder.decode(torch.from_numpy(syndromes).float(), max_iter=20)
predictions = []
for i in range(len(syndromes)):
    e = osd_decoder.solve(syndromes[i], marginals[i].numpy(), osd_order=10)
    predictions.append(int(np.dot(e, obs_flip) % 2))

# 4. Evaluate
accuracy = np.mean(np.array(predictions) == observables)
print(f"Logical error rate: {1 - accuracy:.2%}")

Run with:

uv run python examples/minimal_example.py

Threshold Results

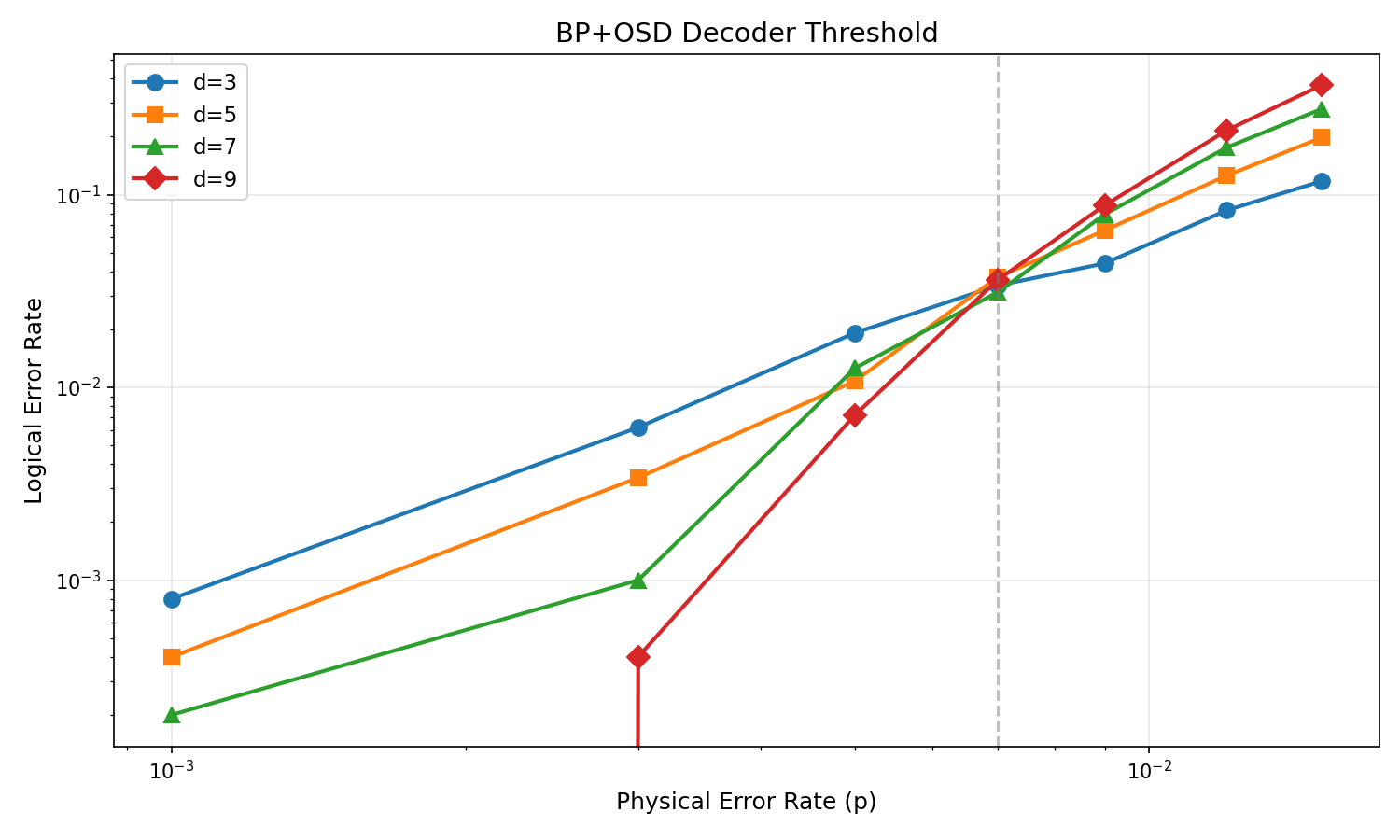

The threshold is the physical error rate below which larger codes perform better. BP+OSD achieves near-optimal threshold:

Decoder	Threshold	Notes
BP (damped)	NA	Fast, limited by graph loops
BP+OSD	~0.7%	Near-optimal, slightly slower
MWPM	~0.7%	Gold standard reference

---

Next Steps

1. Try the minimal example: uv run python examples/minimal_example.py
2. Generate your own data: See Usage Guide for CLI options
3. Understand the math: See Mathematical Description
4. Explore the API: See API Reference
